Longspan, Pallet & Cantilever Racking

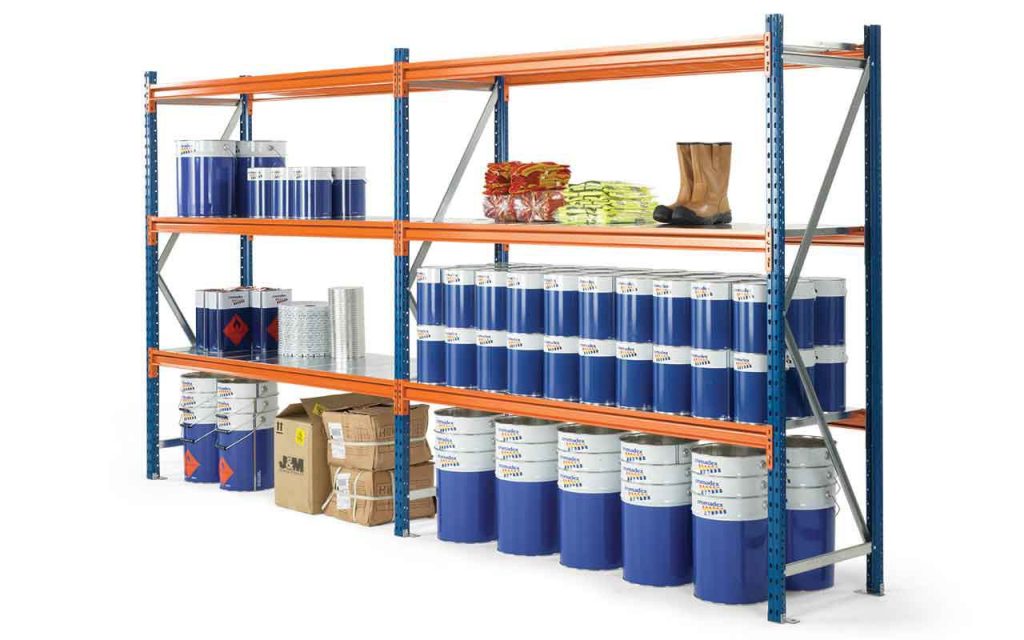

Longspan Racking

Typically used in storerooms for bulk storage but can be used on the shop floor where particulary heavy products need to be displayed.

Choice of shelf materials : Chipboard (with metal supports) or Galvanised Steel.
Frame Heights: 2m, 2.5m. 3m, 3.5m, 4m
Bay depths: 40cm, 50cm, 60cm, 80cm, 90cm, 100cm, 120cm
Bay widths: 95cm, 115cm, 135cm, 150cm, 1850cm, 225cm, 240cm, 270cm
Garment rails are available in the following lengths : 115cm, 135cm, 150cm

For damp or exterior environments, we offer a similar product in Galvanised finish.
LONGSPAN shelving can be assembled and fitted by competent persons, but we are happy to quote for installation if required.
Colours : Frame Blue, Beams Orange

Pallet Racking

We supply pallet racking to Builder's Merchants, DIY and Country Stores & others where palletised storage is required.

Available in both 'Interior' and 'Exterior' specification.
Timber decking (open boarded and closed boarded) and pallet support bars are available.
Frame Heights: 3m, 4.5m. 6m, 7m, 8m, 9m.
Bay depths: 90cm, 110cm
Bay widths: 135cm, 225cm, 270cm, 330cm, 360cm, 390cm
Upright protectors and end barriers are also available

PALLETRACKING must be assembled and fitted by SEMA qualified installers.
We are happy to quote for installation if required.

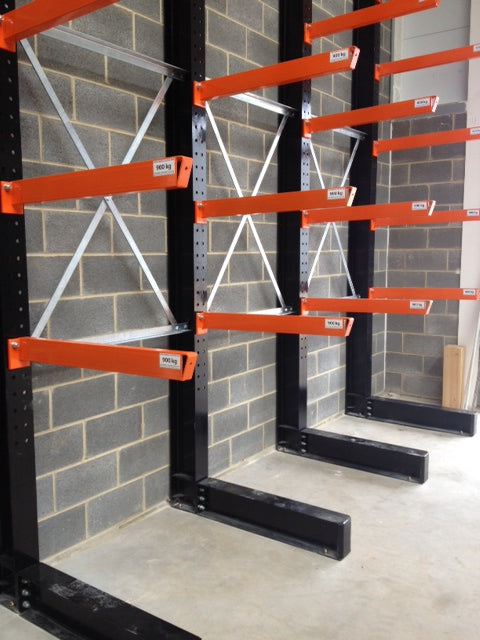

Cantilever Racking

Our CANTILEVER RACK is designed for the storage of items not easily stored on pallets.
This product is ideal for products like long pipes, lintels and lengths of timber.
A CANTILEVER RACK consists of four main components: the base, uprights, arms and supports if required.
We mainly supply this product in hot dip galvanised finish – which is ideal for use in all environments. Painted finishes are also available.
This product is made to order and heights (up to 10m) and leg spacings are user defined, although the most common upright spacing is 1450mm centre to centre.
Individual arm weight loading ranges from 500kg to 1500kg, the most popular being 1000kg.
CANTILEVER RACKING must be assembled and fitted by SEMA qualified installers.
We are happy to quote for installation if required.
